Getting Started with Distributed Tracing Service Map in Splunk Observability

Prerequisites

  • Ngrok account
  • Splunk Observability account
  • git
  • docker compose

We are going to use the OpenTelemetry demo application to demonstrate how to use the Distributed Tracing Service Map in Splunk Observability.

Running the OpenTelemetry demo application locally

  • Clone the OpenTelemetry demo application repository.

    git clone https://github.com/open-telemetry/opentelemetry-demo.git
cd opentelemetry-demo

  • Update the trace exporter to send to Splunk Observability.

    • Change src/otel-collector/otelcol-config-extras.yml
      exporters:
  otlphttp/splunk:
    traces_endpoint: https://ingest.<Splunk_Observability_realm>.signalfx.com:443/v2/trace/otlp
    headers:
    "X-SF-Token": "<Splunk_Observability_access_token>"
    "Content-Type": "application/x-protobuf"

service:
  pipelines:
    traces:
    exporters: [spanmetrics, otlphttp/splunk]
      • Replace <Splunk_Observability_realm> with your Splunk Observability realm (e.g., us0, us1, eu0, etc.)
      • Replace <Splunk_Observability_access_token> with your Splunk Observability access token.

  • Start the OpenTelemetry demo application

    docker compose up --force-recreate --remove-orphans --detach

  • Verify that the application is running by visiting http://localhost:8080 in your web browser. You should see the OpenTelemetry demo application homepage.

View a trace in Splunk Observability

  • Call a REST API of the OpenTelemetry demo application to generate some traces
    curl http://localhost:8080/api/cart -H 'traceparent: 00-4bf92f3577b34da6a3ce929d0e0e4736-00f067aa0ba902b7-01'
  • Open the trace https://app.us1.signalfx.com/#/apm/traces/4bf92f3577b34da6a3ce929d0e0e4736

trace

Reverse proxy

We need to expose the OpenTelemetry demo application to the internet to be able create the ThousandEyes test. We can use a reverse proxy like ngrok to do this.

Configure ngrok

  • Sign up/log in at Ngrok.

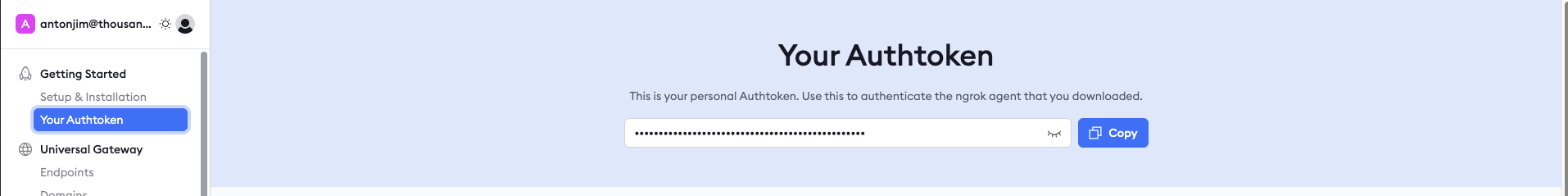

  • Retrieve your authentication token from the ngrok Authtoken page. Auth

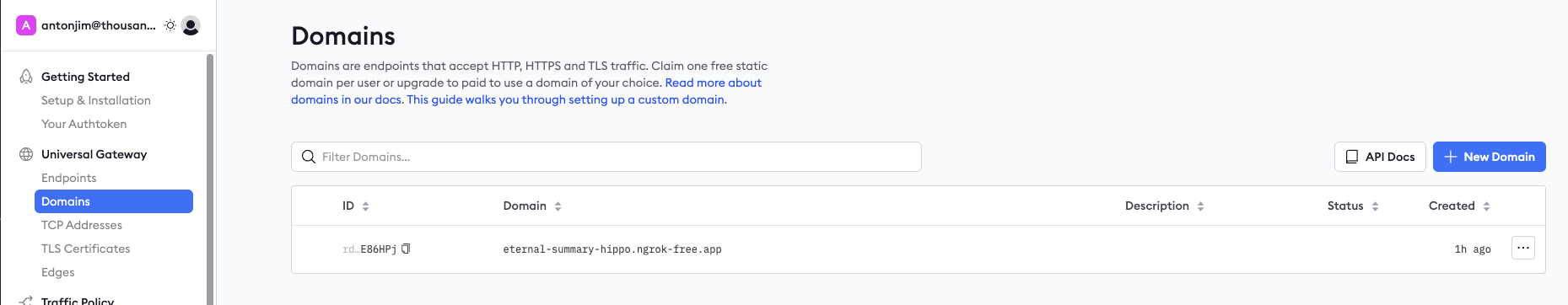

  • Navigate to the ngrok Domains page and create a new domain. This ensures your domain remains static even after ngrok container restarts.
  • Example eternal-summary-hippo.ngrok-free.app domain

Add ngrok to the docker compose

  • Change opentelemetry-demo/docker-compose.yml
    ngrok:
    image: ngrok/ngrok
    container_name: ngrok
    command: ["http", "http://frontend-proxy:${ENVOY_PORT}", "--url=${NGROK_DOMAIN}", "--host-header=${NGROK_DOMAIN}"]
    restart: unless-stopped
    environment:
    - NGROK_AUTHTOKEN="${NGROK_AUTHTOKEN}"
    - ENVOY_PORT
    - NGROK_DOMAIN
    depends_on:
    frontend-proxy:
        condition: service_started
    logging: *logging
  • Change opentelemetry-demo/.env
    • Add the following variables:
      NGROK_AUTHTOKEN=<your_ngrok_auth_token>
NGROK_DOMAIN=<your_ngrok_domain>
    • Example:
      NGROK_AUTHTOKEN=21iZFQf5FYHou7VXd5yk1gOICI9_R46omx9uKSNnwSPiaH7N
NGROK_DOMAIN=eternal-summary-hippo.ngrok-free.app
  • Restart the OpenTelemetry demo application
    docker compose up --force-recreate --remove-orphans --detach

View a trace in Splunk Observability

  • Call a REST API of the OpenTelemetry demo application to generate some traces.
    curl <your_ngrok_domain>/api/cart -H 'traceparent: 00-1bf32f3577b34da6a3ce929d0e0e4736-00f067aa0ba902b7-01'
    • Example:
      curl https://eternal-summary-hippo.ngrok-free.app/api/cart -H 'traceparent: 00-1bf32f3577b34da6a3ce929d0e0e4736-00f067aa0ba902b7-01'
  • Open the trace https://app.us1.signalfx.com/#/apm/traces/1bf32f3577b34da6a3ce929d0e0e4736

trace
